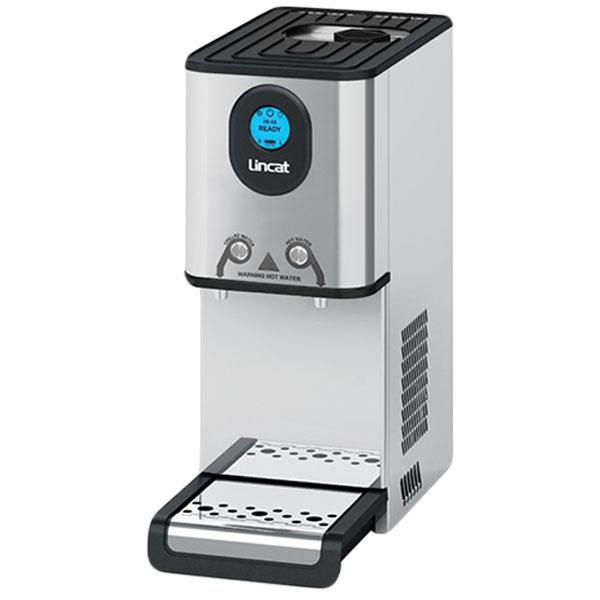

Lincat FilterFlow 3kW Push Button Twin Temp Auto Boiler
Need help with your order? Call on: 0870 774 8111
- Table Top
- Push Button
- Twin Temperature
- 25 Litres Per Hour
- Automatic Fill
- Easy To Use
Features & Benefits Overview
- Convenient push button operation, ideal for front of house and self service
- Filtered chilled and hot water on tap 24 hours a day, space saving and economic - no need for a separate boiler and chiller
- Narrow 250mm footprint saves valuable counter space without compromising capacity or performance
- Built-in water filtration system improves water quality and reduces scale build-up. High volume, easy change FilterFlow cartridge
- Easily operated from a large, colour touchscreen display. Menu navigation is quick and easy with the temperature and timer simple to adjust
- Enhanced diagnostics identify possible causes. The on screen diagnostic information will enable the engineer to identify the parts needed and repair your water boiler at first visit
Specifications
Summary | |
---|---|
Brand | Lincat |
Range | FilterFlow |
Series | FX Counter-top Boiler |
Power Type | Electric |
Unit Type | Counter-top |
Available in UK Only | No |
UK Warranty | 2 Years Parts and Labour Warranty |
Export Warranty | Contact your local dealer |
GTIN | 5056105118237 |
 |  |
Power and Performance | |
Total Power kW | 3.0 |
Temperature Range °C | <11 [Cold]; 70-98 [Hot] |
IP Rating | IP23 |
Hourly Output Litres | 12 [Cold]; 28 [Hot] |
Hourly Output Cups | 60 [Cold]; 140 [Hot] |
Temperature Control | Electronic |
 |  |
Key Specifications | |
Refrigerant Type | R134a |
Outlet | Push Button [Twin Spout] |
Dispense Lock | No |
WRAS Approved | Yes |
 |  |
Capacity | |
Hot and Cold Water Output | Yes |
Rapid Draw Off Litres | 5.0 [Hot] |
Rapid Draw Off Cups | 25 |
Capacity Litres | 7 |
 |  |
Weights and Dimensions | |
Unit Height (External) mm | 595 |
Unit Width (External) mm | 250 |
Unit Depth (External) mm | 570 |
Net Weight Kg | 24.8 |
 |  |
Supply Connections | |
Requires Installation | No |
Requires Electrical Supply | Yes |
UK 3 Pin Plug | Yes |
Requires Hardwiring | No |
Electrical Supply Rating Watts | 3,000 |
Single Phase Amps | 13 |
Single Phase Voltage | 230 |
Water Connection Pressure Bar | 2.0-7.0 |
Water Connection | 3/4" |
 |  |
Shipping | |
Packed Weight Kg | 27.28 |
Packed Height cm | 88 |
Packed Width cm | 65 |
Packed Depth cm | 38 |
Please find all available documentation for the above product below.
- Table Top
- Push Button
- Twin Temperature
- 25 Litres Per Hour
- Automatic Fill
- Easy To Use
Features & Benefits Overview
- Convenient push button operation, ideal for front of house and self service
- Filtered chilled and hot water on tap 24 hours a day, space saving and economic - no need for a separate boiler and chiller
- Narrow 250mm footprint saves valuable counter space without compromising capacity or performance
- Built-in water filtration system improves water quality and reduces scale build-up. High volume, easy change FilterFlow cartridge
- Easily operated from a large, colour touchscreen display. Menu navigation is quick and easy with the temperature and timer simple to adjust
- Enhanced diagnostics identify possible causes. The on screen diagnostic information will enable the engineer to identify the parts needed and repair your water boiler at first visit
Specifications
Summary | |
---|---|
Brand | Lincat |
Range | FilterFlow |
Series | FX Counter-top Boiler |
Power Type | Electric |
Unit Type | Counter-top |
Available in UK Only | No |
UK Warranty | 2 Years Parts and Labour Warranty |
Export Warranty | Contact your local dealer |
GTIN | 5056105118237 |
 |  |
Power and Performance | |
Total Power kW | 3.0 |
Temperature Range °C | <11 [Cold]; 70-98 [Hot] |
IP Rating | IP23 |
Hourly Output Litres | 12 [Cold]; 28 [Hot] |
Hourly Output Cups | 60 [Cold]; 140 [Hot] |
Temperature Control | Electronic |
 |  |
Key Specifications | |
Refrigerant Type | R134a |
Outlet | Push Button [Twin Spout] |
Dispense Lock | No |
WRAS Approved | Yes |
 |  |
Capacity | |
Hot and Cold Water Output | Yes |
Rapid Draw Off Litres | 5.0 [Hot] |
Rapid Draw Off Cups | 25 |
Capacity Litres | 7 |
 |  |
Weights and Dimensions | |
Unit Height (External) mm | 595 |
Unit Width (External) mm | 250 |
Unit Depth (External) mm | 570 |
Net Weight Kg | 24.8 |
 |  |
Supply Connections | |
Requires Installation | No |
Requires Electrical Supply | Yes |
UK 3 Pin Plug | Yes |
Requires Hardwiring | No |
Electrical Supply Rating Watts | 3,000 |
Single Phase Amps | 13 |
Single Phase Voltage | 230 |
Water Connection Pressure Bar | 2.0-7.0 |
Water Connection | 3/4" |
 |  |
Shipping | |
Packed Weight Kg | 27.28 |
Packed Height cm | 88 |
Packed Width cm | 65 |
Packed Depth cm | 38 |
(FSMA) - FULL SERVICE MAINTENANCE AGREEMENT
Includes all breakdown calls including all replacement parts due to fair wear and tear during the contract period, excluding bank holidays and weekends. Included in the above is a bi-annual sanitisation and filter exchange without charge to the customer. However, the day-to-day cleaning is the responsibility of the customer. This includes emptying and cleaning of the drip-tray, wiping the splash panel and cleaning the external outer cabinet to maintain a clean appearance and to complete full hygiene.
(FCSS) - FILTER CHANGE SERVICE & SANITISATION
Includes a bi-annual sanitisation and filter exchange without charge to the customer. However, the day-to-day cleaning is the responsibility of the customer. This includes emptying and cleaning of the drip-tray, wiping the splash panel and cleaning the external outer cabinet to maintain a clean appearance and to complete full hygiene.
(B-FSMA) - BOILER FULL SERVICE MAINTENANCE AGREEMENT
Includes all breakdown calls including all replacement parts due to fair wear and tear during the contract period, excluding bank holidays and weekends. Included in the above is an annual sanitisation and filter exchange, without charge to the customer. However, the day-to-day cleaning is the responsibility of the customer. This includes emptying and cleaning of the drip-tray, wiping the splash panel and cleaning the external outer cabinet to maintain a clean appearance and to complete full hygiene.
