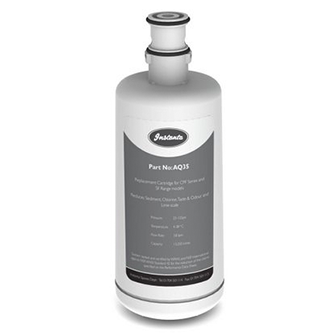

Instanta AQ35 Filter Cartridge

Instanta AQ35 Filter Cartridge

Need help with your order? Call on: 0870 774 8111



Only

The AQ35 filter is compatible with all Instanta water boilers. It is ‘integral’ (built-in) to the 12 models listed below, however can also be fitted externally into the mains water feed to any of our boilers, using the AQ35/KIT.



12 models with the AQ35 built-in:

CTS11F, CTS17F, CTS19F/6, CTSP10, CTSP10H, CTSP11H/4, CTSP17H, CTSP17T, CTSP17HT, CTSP19T/6, CTSP19HT/6, CTSP27T/6



The Instanta filter cartridge must be replaced every 6 months to protect the water boiler against excessively hard and soft water, whilst ensuring that your filtered boiling water remains free fromunpleasant smells or tastes.

Benefits of fitting a genuine AQ35 filter:

  • Designed specifically for use with Instanta water boilers, ensuring you get maximum performance from the filter and the boiler
  • Incorporates a pre-filter to remove unwanted debris from your water supply
  • 4 Stage Filtration removes fine sediment down to 3 Micron such as microplastics, for safer, cleaner drinking water
  • Removes taste & odour impurities such as chlorine, providing purer, fresh tasting water which improves the taste of hot beverages
  • Reduces limescale build-up mitigating potential service/maintenance costs
  • Reduces running costs and improves energy efficiency
  • Filter compatible with Instanta filter monitors, which provide a useful warning when the filter needs replacing.


This high flow water filter delivers the best quality of water by removing sediment and impurities such as chlorine. The filter also reduces scale build-up resulting in lower running costs and improved energy efficiency.



Filter Specifications

Product AQ35 Filter (Grey Label)
Product Code AQ35
Description Scale & Odour Filter
Dimensions (HxDiameter) 223 x 85mm
Water Pressure (Min-Max) 2-7 bar
Max Incoming Water Temp 35c
Change After 6 Months or 13,500 Litres
Compatibility CPF Series & SF Range
Application Medium to High Usage
Litres Per Hour 27 Litres



Please find all available documentation for the above product below.

The AQ35 filter is compatible with all Instanta water boilers. It is ‘integral’ (built-in) to the 12 models listed below, however can also be fitted externally into the mains water feed to any of our boilers, using the AQ35/KIT.



12 models with the AQ35 built-in:

CTS11F, CTS17F, CTS19F/6, CTSP10, CTSP10H, CTSP11H/4, CTSP17H, CTSP17T, CTSP17HT, CTSP19T/6, CTSP19HT/6, CTSP27T/6



The Instanta filter cartridge must be replaced every 6 months to protect the water boiler against excessively hard and soft water, whilst ensuring that your filtered boiling water remains free fromunpleasant smells or tastes.

Benefits of fitting a genuine AQ35 filter:

  • Designed specifically for use with Instanta water boilers, ensuring you get maximum performance from the filter and the boiler
  • Incorporates a pre-filter to remove unwanted debris from your water supply
  • 4 Stage Filtration removes fine sediment down to 3 Micron such as microplastics, for safer, cleaner drinking water
  • Removes taste & odour impurities such as chlorine, providing purer, fresh tasting water which improves the taste of hot beverages
  • Reduces limescale build-up mitigating potential service/maintenance costs
  • Reduces running costs and improves energy efficiency
  • Filter compatible with Instanta filter monitors, which provide a useful warning when the filter needs replacing.


This high flow water filter delivers the best quality of water by removing sediment and impurities such as chlorine. The filter also reduces scale build-up resulting in lower running costs and improved energy efficiency.



Filter Specifications

Product AQ35 Filter (Grey Label)
Product Code AQ35
Description Scale & Odour Filter
Dimensions (HxDiameter) 223 x 85mm
Water Pressure (Min-Max) 2-7 bar
Max Incoming Water Temp 35c
Change After 6 Months or 13,500 Litres
Compatibility CPF Series & SF Range
Application Medium to High Usage
Litres Per Hour 27 Litres



(FSMA) - FULL SERVICE MAINTENANCE AGREEMENT

Includes all breakdown calls including all replacement parts due to fair wear and tear during the contract period, excluding bank holidays and weekends. Included in the above is a bi-annual sanitisation and filter exchange without charge to the customer. However, the day-to-day cleaning is the responsibility of the customer. This includes emptying and cleaning of the drip-tray, wiping the splash panel and cleaning the external outer cabinet to maintain a clean appearance and to complete full hygiene.

(FCSS) - FILTER CHANGE SERVICE & SANITISATION

Includes a bi-annual sanitisation and filter exchange without charge to the customer. However, the day-to-day cleaning is the responsibility of the customer. This includes emptying and cleaning of the drip-tray, wiping the splash panel and cleaning the external outer cabinet to maintain a clean appearance and to complete full hygiene.

(B-FSMA) - BOILER FULL SERVICE MAINTENANCE AGREEMENT

Includes all breakdown calls including all replacement parts due to fair wear and tear during the contract period, excluding bank holidays and weekends. Included in the above is an annual sanitisation and filter exchange, without charge to the customer. However, the day-to-day cleaning is the responsibility of the customer. This includes emptying and cleaning of the drip-tray, wiping the splash panel and cleaning the external outer cabinet to maintain a clean appearance and to complete full hygiene.
